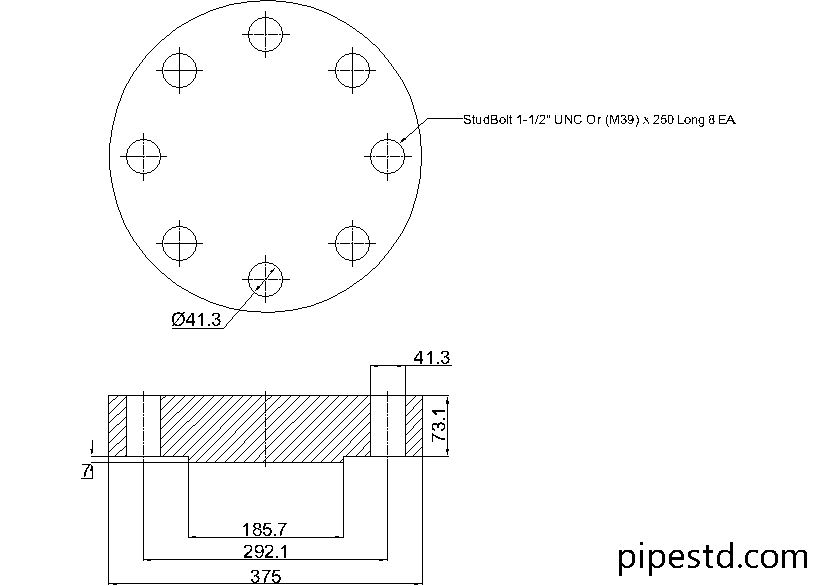

Blind Flange Class 1500 Reference : ANSI ASME B16.5 Flanges Size NPS : 5″ Size DN : 130 mm. Blind Flange Thickness : 73.1 mm. Weight : 64 kg. StudBolt Size : 1 1/2″ UNC Or (M39) x 250 Long No. of Bolts : 8 EA. Holes Diamater : 41.275 mm.
