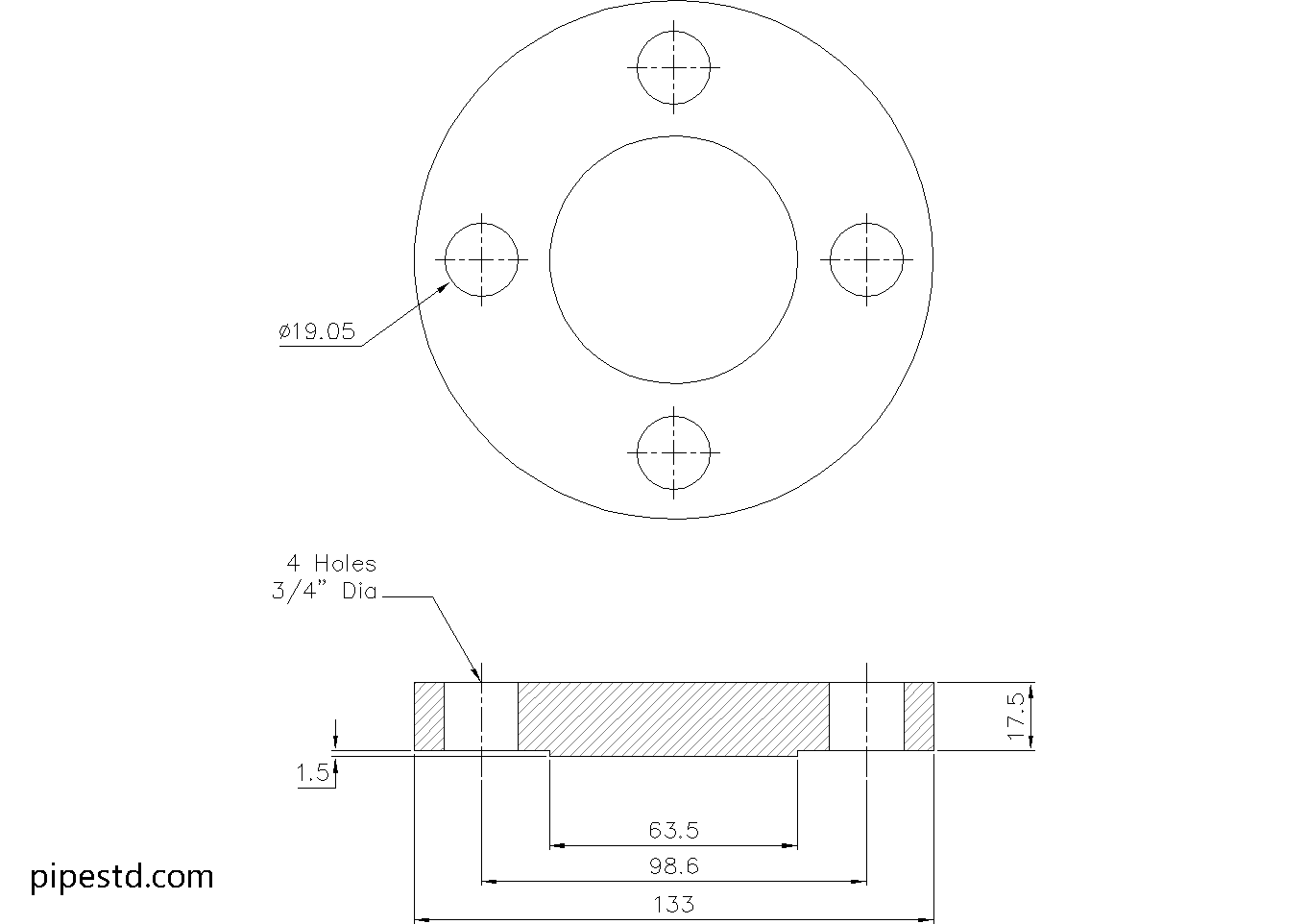

Blind Flange 1 1/4 Inch Class 300
Blind Clange Class 300
Reference : ANSI ASME B16.5 Flanges
Size NPS : 1 1/4″
Size DN : 32 mm.
Blind Flange Thickness : 17.5 mm.
Weight : 1.8 kg.
StudBolt
Size : 5/8″ UNC Or (M16) x 85 Long
No. of Bolts : 4 EA.
Holes Diamater : 19.05 mm.
Blind Flange 1 1/4 Inch Class 300
draftsman
Share post:
Blind Flange 1 1/4 Inch Class 300
Reference : ANSI ASME B16.5 Flanges
Size NPS : 1 1/4″
Size DN : 32 mm.
Blind Flange Thickness : 17.5 mm.
Weight : 1.8 kg.
StudBolt
Size : 5/8″ UNC Or (M16) x 85 Long
No. of Bolts : 4 EA.
Holes Diamater : 19.05 mm.
Blind Flange 1 1/4 Inch Class 300
