This reference page provides the listed dimensions, bolting information, weight, and CAD resource for a Blind Flange 12 Inch Class 2500. Use it when checking a piping layout, coordinating a flange connection, or preparing fabrication and drafting documentation.
The flange is identified by nominal pipe size and pressure class, while the dimension list provides the physical information needed for preliminary layout and component comparison. For procurement, fabrication, and installation, confirm the project specification and the complete flange assembly requirements.
Blind Flange 12″ Class 2500
Blind Flange 12″ Class 2500 is used to seal the end of a piping system or close off a flange connection in Class 2500 service. It is a solid flange without a center bore and is commonly used in industrial piping systems, maintenance isolation points, and future pipeline expansion connections where an extremely high pressure rating is required.
This dimension data is based on ANSI / ASME B16.5-2020.
Blind Flange 12″ Class 2500 Dimensions
- Reference Standard: ANSI / ASME B16.5
- Nominal Pipe Size (NPS): 12″
- DN Size: DN300
- Flange Thickness: 184.2mm
- Weight: 575kg
- Stud Bolt Size: 2 3/4″ UNC (or M72) x 540 Long
- Number of Bolts: 12
- Hole Diameter: 2 7/8″ (73.025mm)
What Is a Blind Flange?
A blind flange is a blank flange used to close the end of a pipeline, vessel nozzle, or equipment connection. It provides a secure shutoff point and is often selected when future maintenance, inspection, or line extension may be required.
Common Applications
Blind Flange 12″ Class 2500 is commonly used for:
- Pipe end closure
- Equipment isolation
- Valve and nozzle blanking
- Maintenance shutdown work
- Process and utility piping systems
- Extremely high pressure piping applications
CAD Drawing Download

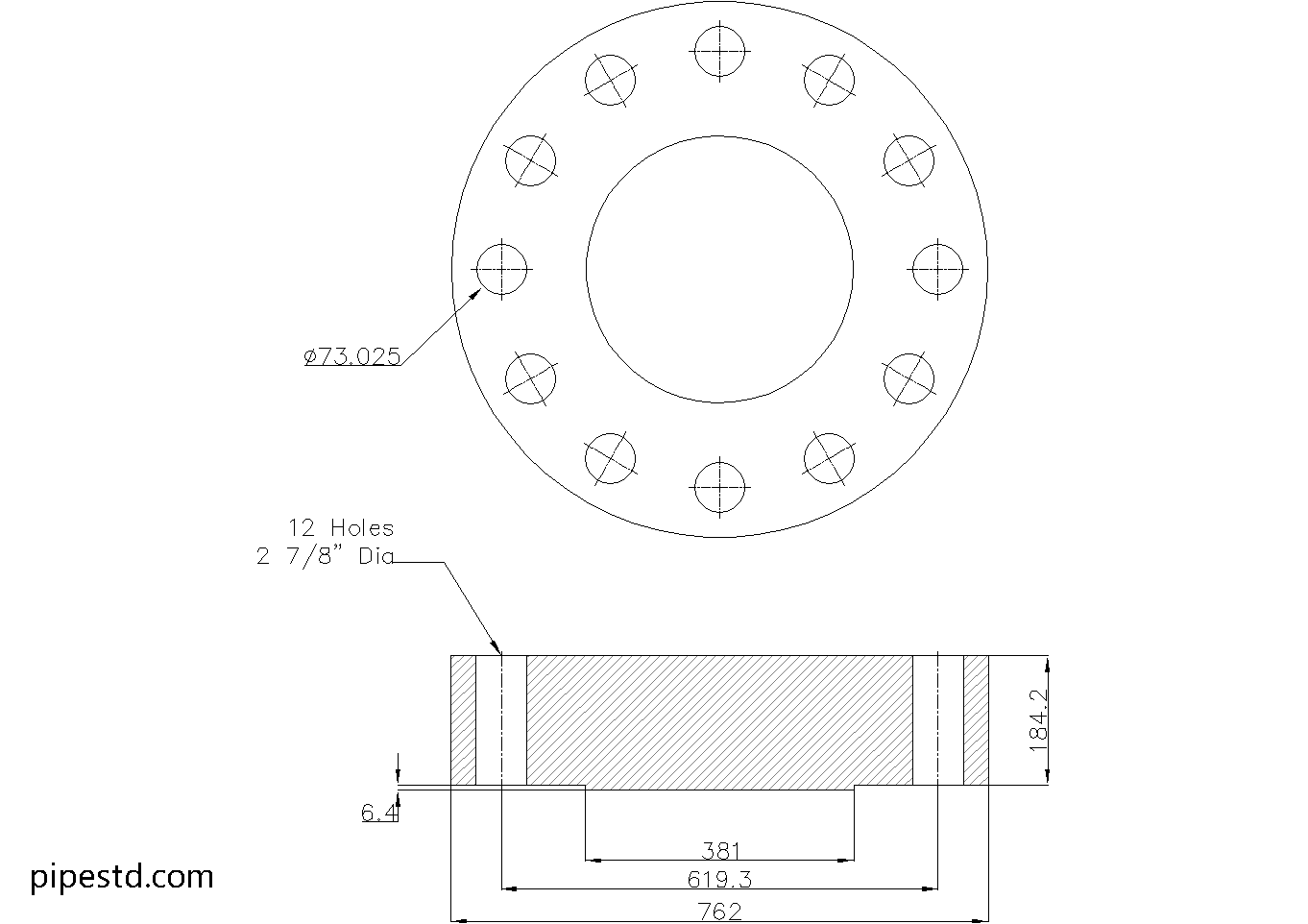

This page includes the CAD drawing file for Blind Flange 12″ Class 2500, which can be used for drafting, detailing, and piping layout coordination.
