Blind Flange 20″ Class 1500
Blind Flange 20″ Class 1500 is used to seal the end of a piping system or close off a flange connection in Class 1500 service. It is a solid flange without a center bore and is commonly used in industrial piping systems, maintenance isolation points, and future pipeline expansion connections where a very high pressure rating is required.
This dimension data is based on ANSI / ASME B16.5-2020.
Blind Flange 20″ Class 1500 Dimensions
- Reference Standard: ANSI / ASME B16.5
- Nominal Pipe Size (NPS): 20″
- DN Size: DN500
- Flange Thickness: 177.8mm
- Weight: 1022kg
- Stud Bolt Size: 3″ UNC (or M76) x 540 Long
- Number of Bolts: 16
- Hole Diameter: 3 1/8″ (79.375mm)
What Is a Blind Flange?
A blind flange is a blank flange used to close the end of a pipeline, vessel nozzle, or equipment connection. It provides a secure shutoff point and is often selected when future maintenance, inspection, or line extension may be required.
Common Applications
Blind Flange 20″ Class 1500 is commonly used for:
- Pipe end closure
- Equipment isolation
- Valve and nozzle blanking
- Maintenance shutdown work
- Process and utility piping systems
- Very high pressure piping applications
CAD Drawing Download

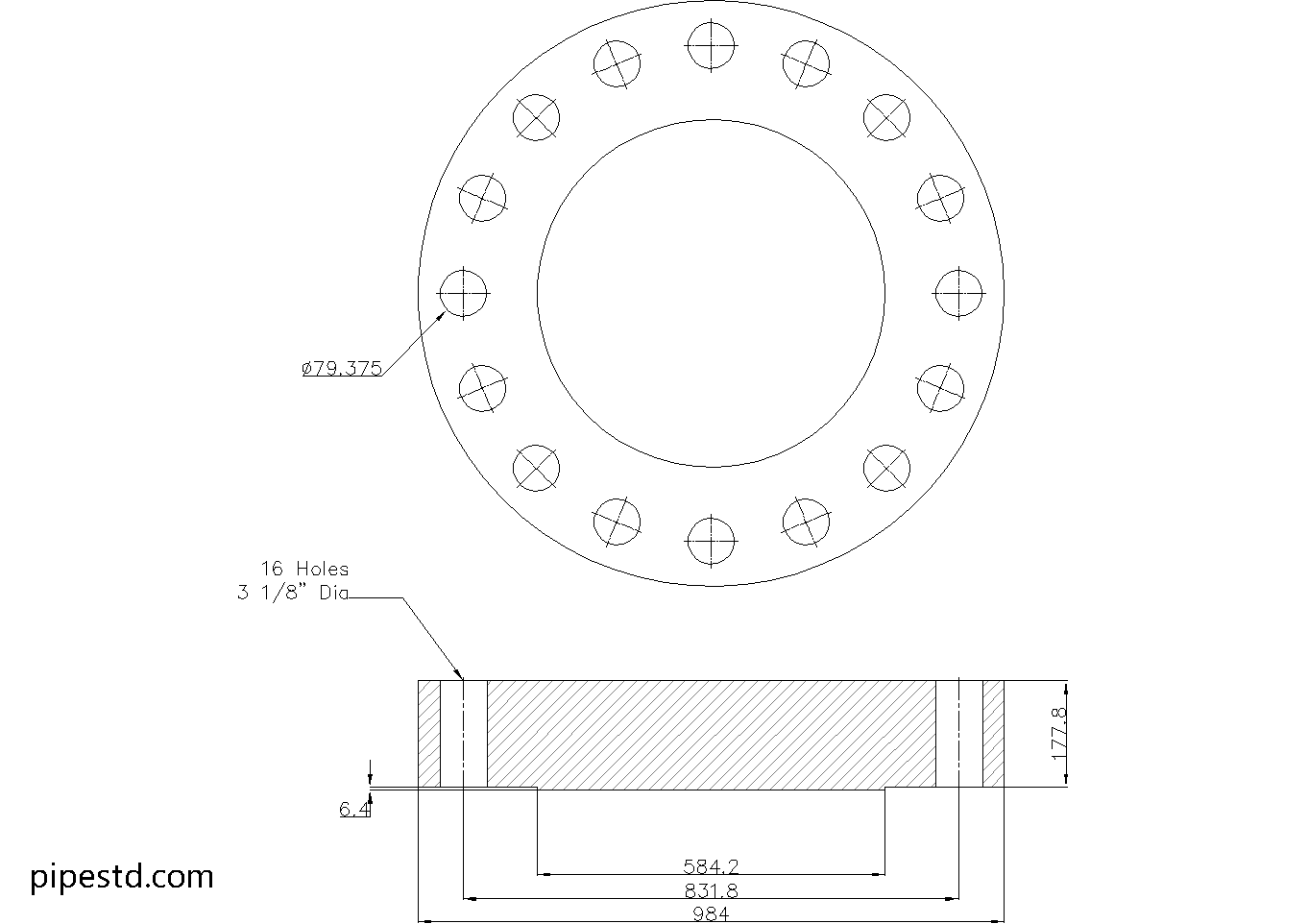

This page includes the CAD drawing file for Blind Flange 20″ Class 1500, which can be used for drafting, detailing, and piping layout coordination.
