🛠️ Butt Weld Eccentric Reducer Master

ASME B16.9 Standard Fittings (Metric Technical Data)

1. Schedule (SCH)

2. Large End (NPS 1)

3. Small End (NPS 2)

Dimensional Data

Large OD / Small OD
–

End-to-End Length (H)
–

Center-to-Center(C)
–

Unit Mass

– kg

4. Quantity (Pcs)

Total Weight
0.00 kg

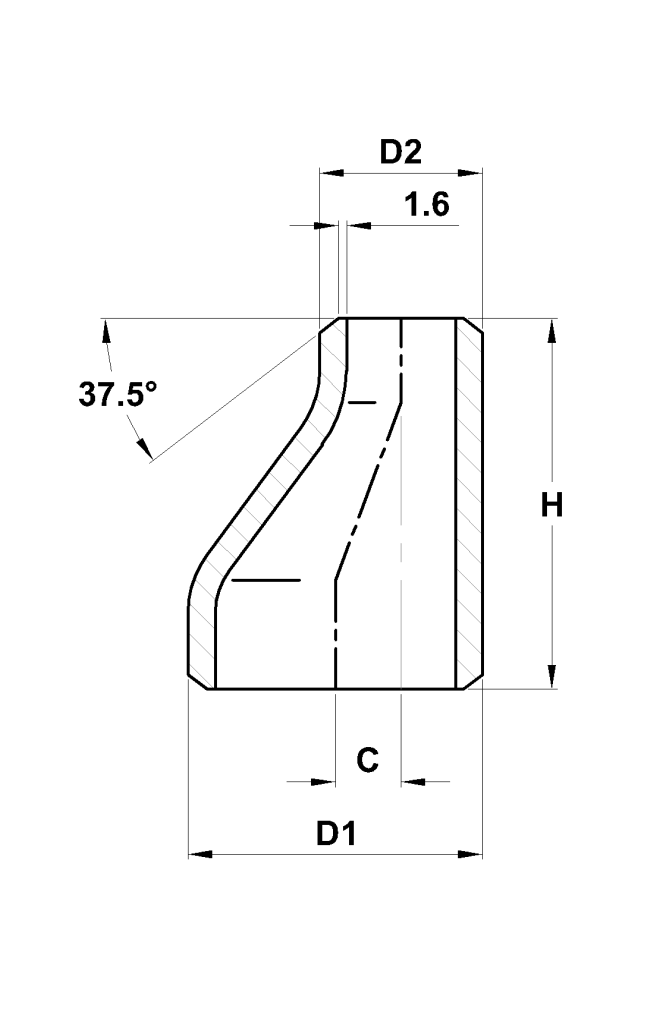

Dimension Guide

H (End-to-End): Total length of the reducer from face to face.

D1 (Large End OD): Outside diameter of the larger connection.

D2 (Small End OD): Outside diameter of the smaller connection.

C (C-to-C): Distance between both centerlines.
