This reference provides the dimension data, bolt information, weight, and CAD resource for a Weld Neck Flange 1/2 Inch Class 150. Use it when preparing piping layouts, checking fabrication details, or coordinating flange connections with pipe and fittings.
The flange dimensions should be read together with the pipe schedule, bore requirement, gasket arrangement, and project specifications. The listed bore is schedule-dependent, so it should not be treated as a single universal opening for every pipe configuration.
Weld Neck Flange 1/2″ Class 150
Weld Neck Flange 1/2″ Class 150 is widely used in piping systems that require strong, leak-resistant flange connections. It features a long tapered hub that provides excellent stress distribution and is commonly applied in process piping, utility lines, and industrial systems where welding strength and reliability are important.
This dimension data is based on ANSI / ASME B16.5-2020.
Weld Neck Flange 1/2″ Class 150 Dimensions
- Reference Standard: ANSI / ASME B16.5
- Nominal Pipe Size (NPS):1/2″
- DN Size: DN15
- Outside Diameter:89mm
- Flange Thickness:9.7mm
- Hub Diameter:30mm
- Bore Diameter: varies depending on pipe schedule and pipe wall thickness
- Raised Face Diameter:34.9mm
- Weight: 0.9kg
- Number of Bolts:4
- Stud Bolt Size: 1/2″ UNC (or M14) x 55 Long
- Hole Diameter: 5/8″ (15.875mm)
What Is a Weld Neck Flange?
A weld neck flange is a type of pipe flange designed with a long tapered hub that is welded directly to the pipe. This design helps reduce stress concentration at the flange base and provides better strength under pressure, temperature fluctuation, and cyclic loading.
Common Applications
Weld Neck Flange 1/2″ Class 150 is commonly used for:
- Process piping systems
- Oil and gas lines
- Water and utility piping
- High-temperature service
- Pressure piping connections
- Industrial fabrication and maintenance work

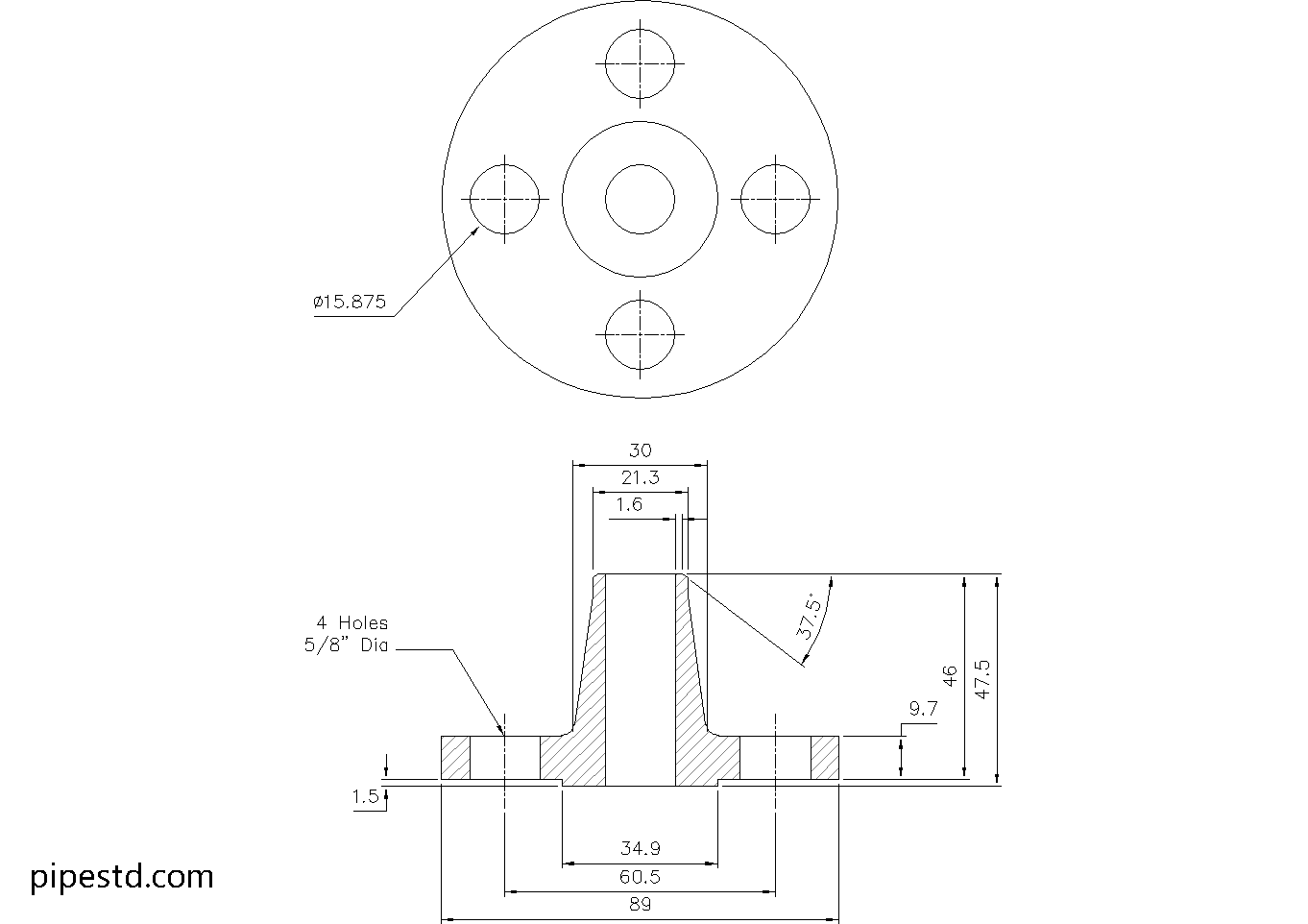

CAD Drawing Download
