Weld Neck Flange 12″ Class 400
Weld Neck Flange 12″ Class 400 is widely used in piping systems that require strong, leak-resistant flange connections. It features a long tapered hub that provides excellent stress distribution and is commonly applied in process piping, utility lines, and industrial systems where welding strength and reliability are important.
This dimension data is based on ANSI / ASME B16.5-2020.

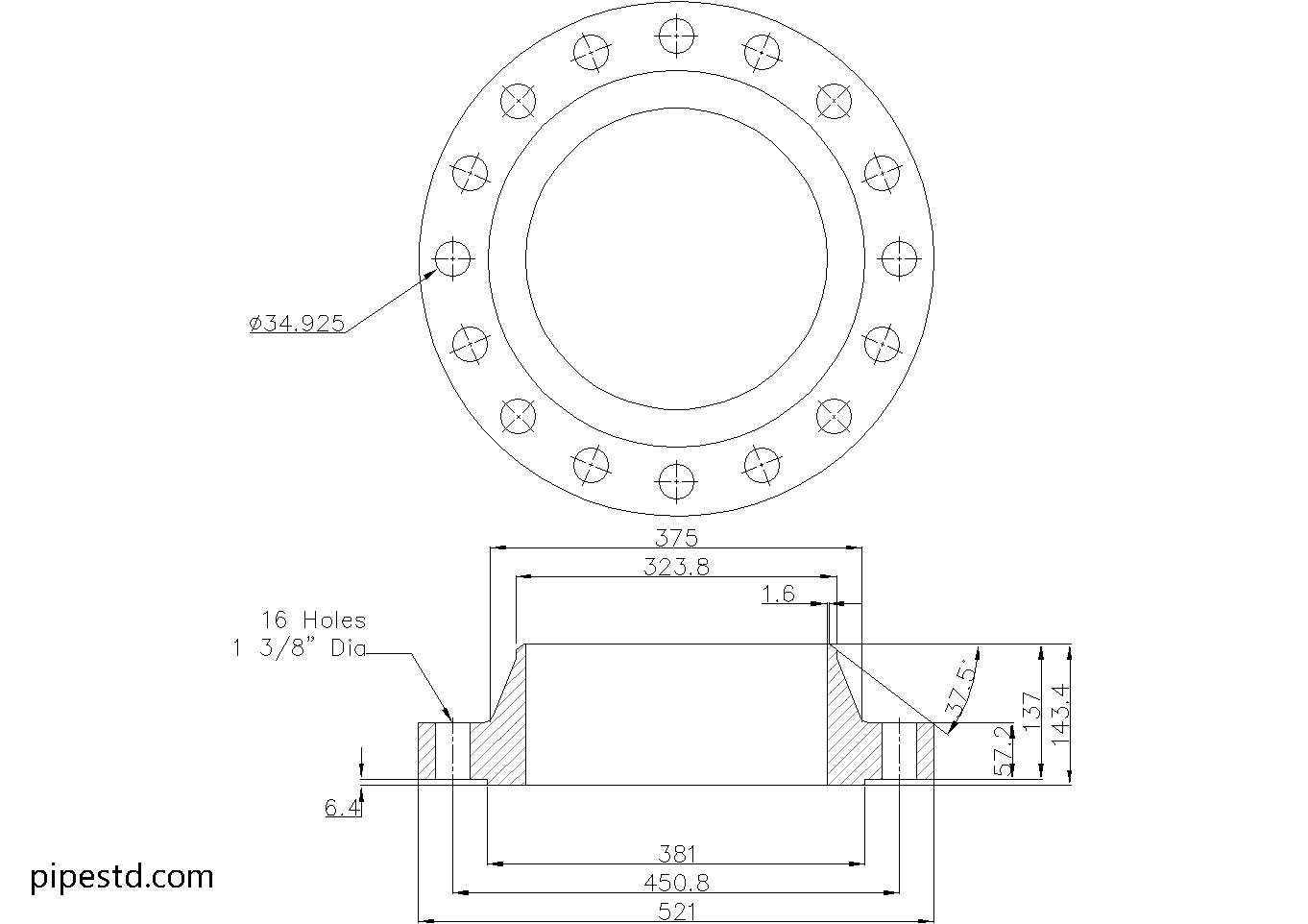

Weld Neck Flange 12″ Class 400 Dimensions
- Reference Standard: ANSI / ASME B16.5
- Nominal Pipe Size (NPS):12″
- DN Size: DN300
- Outside Diameter:521mm
- Flange Thickness:57.2mm
- Hub Diameter:375mm
- Bore Diameter: varies depending on pipe schedule and pipe wall thickness
- Raised Face Diameter:381mm
- Weight: 102kg
- Number of Bolts:16
- Stud Bolt Size: 1 1/4″ UNC (or M33) x 205 Long
- Hole Diameter: 1 3/8″ (34.925mm)
