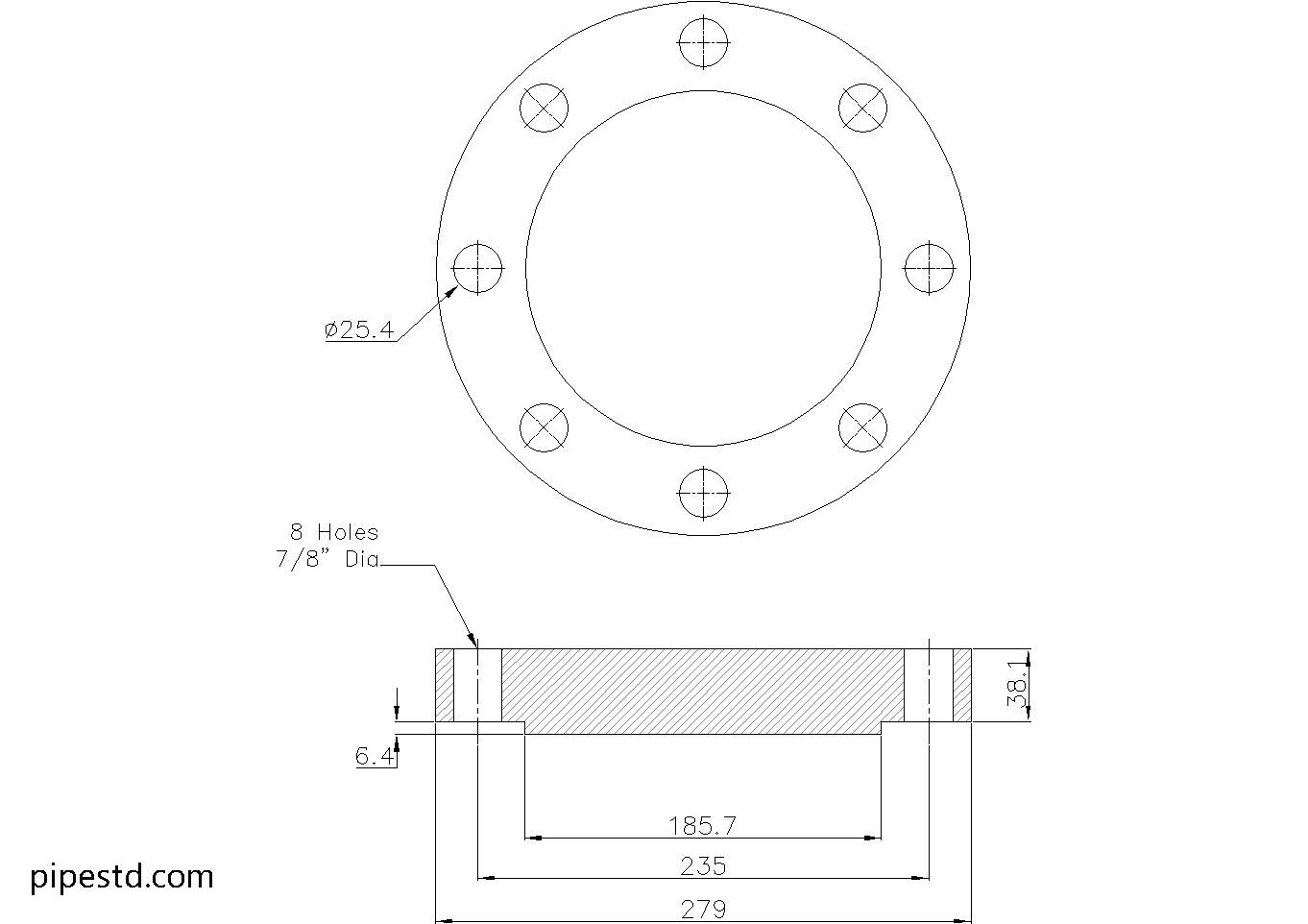

Blind Flange 5 Inch Class 400
Blind Flange Class 400
Reference : ANSI ASME B16.5 Flanges
Size NPS : 5″
Size DN : 125 mm.
Blind Flange Thickness : 38.1 mm.
Weight : 20 kg.
StudBolt
Size : 7/8″ UNC Or (M24) x 145 Long
No. of Bolts : 8 EA.
Holes Diamater : 25.4 mm.
Blind Flange 5 Inch Class 400
