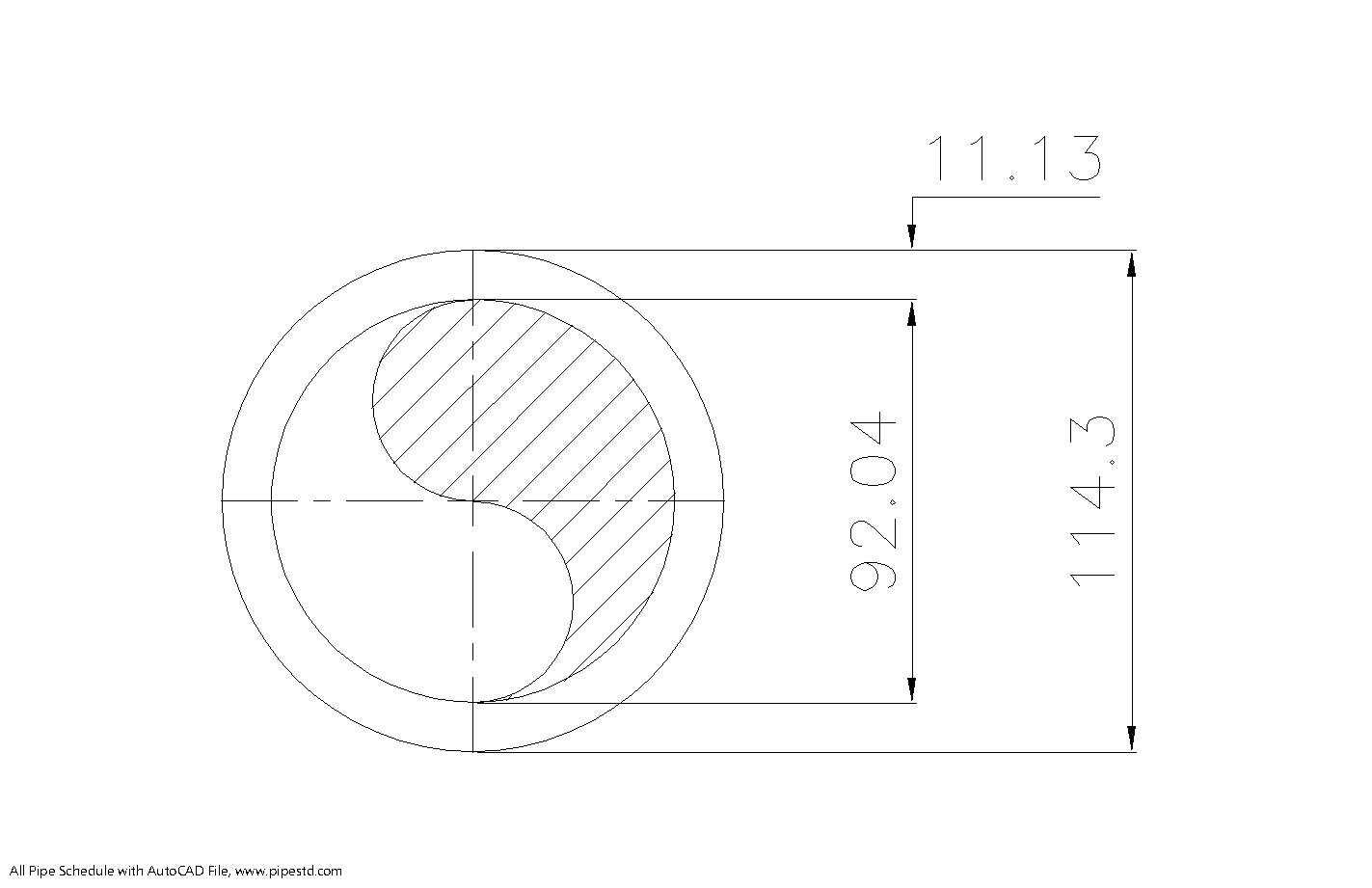

Schedule 120 Pipe 4 Inch DN100

Schedule 120 Pipe 4 Inch DN100

Schedule 120 Pipe 4 Inch (DN100 mm)

Standard : ANSI/ASME B36.10(Steel Pipe)
– Size : NPS 4 Inch
– Size : DN100 mm
– Inside Dimeter(Pipe ID) : 92.04 mm
– Outside Dimeter(Pipe OD) : 114.3 mm
– Pipe Wall Thickness : 11.13 mm
– Pipe Weight : 28.32 Kilogram per meter (kg/m)
– Pipe Weight Including Water : 34.97 Kilogram per meter (kg/m)
*NPS = Nominal pipe size(inch) / DN = Diameter nominal(mm)

Schedule 120 Pipe 4″ (DN 100 mm)
Reference ANSI/ASME B36.10
Pipe Schedule 120
NPS(inch) DN(mm) OD(mm) ID(mm) WALL THICKNESS(mm) WEIGHT(kg/m)
4″ 100 114.3 92.04 11.13 28.32
